SAVE 0%! The Besf Offer Wifi Car Camera For Landrover Rover Aurora 170 Degree Wide Angle Window Closer+ Video Recorder 2 In 1 Hidden Fhd 1080P Car DVRS
You Get Discount 0% Original Price is US $85.00, If You Buy it Now until 2016-12-01 You Just Pay For US $85.00 Buy It Now

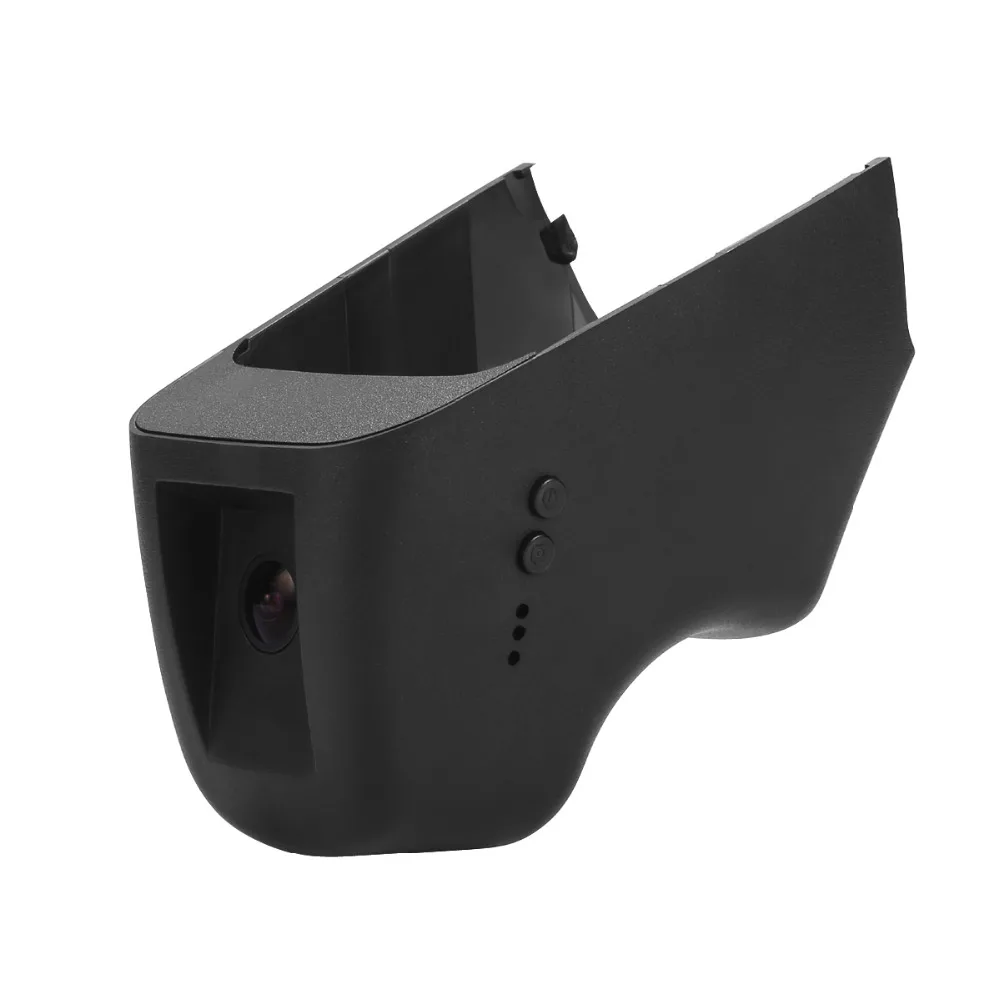

Wifi Car Camera For Landrover Rover Aurora 170 Degree Wide Angle Window Closer+ Video Recorder 2 In 1 Hidden Fhd 1080P Car DVRS
Note: This DVR is for landrover Rover Aurora 2014-
Before you make order, please check if your mirror holder have the same shape of our DVR, if not, please do not buy. Or contact us to confirm.
1. Car coverage:
3.Tech Parameters:
1.Name:Car DVR Car Dedicated driving recorder
2.Origin: China mainland
3.Shooting angle: 170 ° degree
4.Type: One Camera with Single-lens
5.Appearance: Mini hidden type
6.Function:Night vision strengthen
7.Resolution: 1080P
8.Memory Capacity: Standard configuration 8G (optional 16G, 32G)
Camera Specifications:
Lens technology parameters introduced
1.Sensor size: 12.80mm X 11.60mm
2.Wavelength: 400-700nm (COLOR)
3.Focal length: f = 2.8
4.F/NO: F /NO=2.8
5.After the focal length: BFL = 5.96
6.Flange length: FB = 4.15
7.visual angle (Diagonal Perspective) :170 °
8.Visual field (horizontal angle): 120 °
9.Thread Size: M12 X P0.5
10.ELEMENT: 6 ELEMENT + IR
11.Infrared filter specification: T50% = 650 ± 15nm
CPU Main technical parameters introduce:
1, high-performance 32-bit processor, clocked at up to work 432MHz, integrated high-performance DSP.
2, embedded power management module, low power consumption.
3, the maximum expandable 2GB DDR2 / DDR3 memory.
4, support for high-definition video input, maximum support 1080P.
5, high-performance image processing engine, support WDR technology, amblyopia class.
6, support for LCD / TV display output
7, support HDMI V1.3a Interface
8, H.264 / AVC encoding
Support 1080p30,720p60,480p120,Support MP4, AVI, MOV video format.
9, support the audio decoder
10, support JPEG
11,support the memory controller SD3.0, support maximum 32G memory card.
12, supports wireless Wi-Fi interface.
5.App Introduction:
Support iOS | Android
Mobile phone connect Car DVR via WiFi
WiFi:CYHY
WiFi Password:12345678
Open Car DVR application, There is three main interface options:
Car DVR List Interface, Multimedia Interface, Setting interface.
1. First remove the rain sensor wire slot above the inner mirror (a hand pinch live arrow buckle to on the other hand pinch the tail around shake slightly downwards)
2. both hands pull out the two snap joint (see the arrow in figure) and then slide down and take down the cover (part of the vehicle wire harness to disconnect the plug).
3.Open control panel lamps( the arrow in figure) followed by taking the panel and then Use the cross screwdriver to remove two screws Panasonic dome light control panel.
4. Install the recorder and line slot (lead in the arrow 2 through the arrow 1 and set aside in the arrow 3)
5. Forced to open the driver\'s side airbag A column trim (note the buckle) and open the driver\'s side dashboard cover
6. Lead wire harness in the arrow A direction and leave the appropriate wire harness for the OBD2 connector, then along the arrow A-B-C up to the airbag panel
7.Use iron wire to lead wire harness from the fuse to the trim panel and insert into the plug at the top gear, put into the roof trim panel.
8.Arrange the wire harness and cover the trim panel, dome light panel.
1.Car Digital Video Record Host
2.OBD2 connector for power supply
3.Manual
1.Q:Can car dvr keep recording after stopping car?
A:It will stop working in 10 minutes after flameout( it differs according to car sleeping ACC time).Turn on the stop monitoring recording function. After flameout, if strong collision happens, the system will be wake up and record for 30 seconds( not for gentle collision)
2.Q:Can we check video on original car screen?
A:Only for those have CVBS input interface. For benz, bm-w, Por-sche…,bus decoder are needed.
3.Q:What is app?
A:App is a mobile phone application ,like just Wechat.
4. Q:Why my phone can not install App?
A:Please make sure your phone is with app installation condition, for android, it needs enough memory or SD card memory. For apple, please confirm it is not jailbreak.App needs 20M memory. If dimensional coding scan fail to run the website, please copy the address with browse.Lastly, make sure the internet is normal.
5.Q:wifi can not auto connect after change name or password
A:First time changing wifi, need reput password, and later can connect automatically.You can contact our sales person if forget password or can not connect.
6.Q:Video in sd file can not read, fail to download.
A:We advice you to clean mobile phone cache to make sure memory is enough, and update App.
7.Q:Now Storage battery always (12v,24v,36v”, can car dvr get power from them all?
A:Direct current 12V is ok, not for 24V,36V.
8. Q:The time on car dvr is wrong, how to adjust?
A:Connet your car dvr with mobile phone by wifi,then the time will be correct automatically. If still not,can make video to change time.
9.Q:Loop recording not ok?
A:Make sure sd card is ok, or can change C10 high speed SD card. If still have problem, contact us
10.Q:Why my video not clear?
A:Make sure the film on lens is removed; Clean the fingerprint. Set video recording as”1080P”; or you can check it on laptop.
11.Q:How long for video recording with 32G card?
A:About 7 hours.
12.Q:What is the max sd card?
A: 32G
13.Q: What is G-sensor?
A:It is for video locking in emergency brake.
14.Q:Will video keep recording after exit app?
A:Yes, the dvr background will keep recording
15.Q:What is 1080P means?
A:1920*1080 is the highest pixel currently.
16.Q: What is the power?
A:Normally lower than 200Ma when working,and lower than 1mA after stopping car.
17.Q:What is the range of WIFI?
A: Principly 10 meters, but sometimes depends on the around environment.
18.Q: Any internet flow need?
A:With direct connect wifi, no internet flow is waste.
19.Q:Can we make video without sd card?
A: No.Only when browse video or checking car dvr status, no sd card is need. Otherwise the video will be low resolution. We recommend Kingston, SanDisk, Toshiba …with class10 high speed TF card to store video.
20.Q:Will any original car function be affected?
A: Not any function will be affected.
21.Q:Is it with sound recording function?
A:Yes, set it in app(set-sound recording function)
22.Q: How to take picture?
A: Set it in app real-time video interface
23.Q:What is the format function for in app?
A:It can make compatibility match. Format new card is recommended. It will delete all datas inside, so please save all important file you need before format.
